Drainage and ventilation for aluminum windows
For aluminum windows, the water slot caps available in many colors are timeless and suitable. Monodrain we have in our delivery program for special requirements.

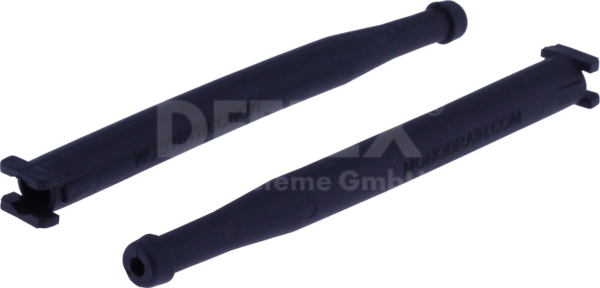

monodrain 242408
Drainage for aluminum windows, universally applicable in standard narrow window profiles. Disturbing water slot caps on windows will be a thing of the past in the future. MONODRAIN Ôäó is the patented solution for creating a invisible drainage on the underside of standard-flat profiles. MONODRAIN Ôäó is revolutionary in its simplicity, but works effectively and aesthetically. The window profile is pierced completely (D = 9.5 mm) and into the hole the specially shaped elastic tube DEFLEX-MONODRAIN is inserted. The drainage and venting takes place by means of this tube, which is ultimately trapped between the inside of the window profile and the glass sheet. At least 2 tubes (maximum distance 600 mm) are required per disc.
DEFLEX ID:
1329101000
Article is available
water slot cap 34/7035
for aluminum windows use with: Profile wall thickness: approx. 2.0 mm Slot size: 34 x 4 mm
DEFLEX ID:
2391570350
Article is available
water slot cap 34/9005
alternative to system number 208694, fits with Schüco, for use in aluminum window: profile wall thickness: approx. 2.0 mm slot size: 34 x 4 mm
DEFLEX ID:
2391590050
Article is available

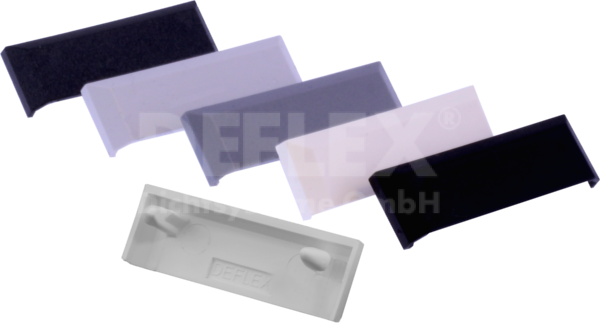

water slot cap 34/9010
for aluminum windows use with: Profile wall thickness: approx. 2.0 mm Slot size: 34 x 4 mm
DEFLEX ID:
2391590100
Article is available
water slot cap 34/9016
for aluminum windows use with: Profile wall thickness: approx. 2.0 mm Slot size: 34 x 4 mm
DEFLEX ID:
2391590160
Article is available
water slot cap 34/DB703
for aluminum windows use with: Profile wall thickness: approx. 2.0 mm Slot size: 34 x 4 mm
DEFLEX ID:
2391500703
Article on request
