Connecting and mounting
The use of suitable high-quality corner and T-connectors is the basis for the window statics in the case of aluminium windows. In the case of PVC-U profiles, appropriate welded corner connectors are used for doors for torsional rigidity. Finally, the force-locking assembly with wall anchors or turbo screws of construction elements with the building shell is necessary for a long and functioning window life.
aluminium nail 18892 5x6,8 mm
alternative to system number 218892, fits with Schüco AWS, with notch, for the fixation of T- and corner connectors.
DEFLEX ID:
7606150680
Article is available
corner joint 36033
alternative to system number 236033, 226966, fits with Schüco AWS, ffor wing profile and frame profile, punchable and nailable, trovalized and prefabricated
DEFLEX ID:
7607036033
Article is available
t-joint 36763
alternative to system number 236763, 236762, 235093, 235092, fits with AWS/ADS90, for posts / bolts, nailable, trovalized and made-to-measure, non-foamed with jack screw
DEFLEX ID:
7607536763
Article is available
mounting screw-universal 7,5 x 152 mm
Special screw for dowel-free fastening of window and door frames in concrete, natural stone, masonry made of bricks or perforated bricks, head diameter (countersunk head) 11 mm, with tooth drive TX 30, for hole D = 6 mm
DEFLEX ID:
7603571520
Article is available
aluminium nail 18156 5x10,0 mm
alternative to system number 218156 fits with Schüco AWS, with notch, for the attachment of T- and corner connectors.
DEFLEX ID:
7606151000
Article is available
aluminium nail 18157 5x13,5 mm
alternative to system number 218157, fits with Schüco AWS, with notch, for the attachment of T- and corner connectors.
DEFLEX ID:
7606151350
Article is available
aluminium nail 18158 5x18,0 mm
alternative to system number 218158, fits with Schüco AWS, with notch, for the attachment of T- and corner connectors.
DEFLEX ID:
7606151800
Article is available
aluminium nail 18779 5x8,0 mm
alternative to system number 218779, fits with Schüco AWS, with notch, for the fixation of T- and corner connectors.
DEFLEX ID:
7606150800
Article is available
aluminium nail 18892 5x6,8 mm
alternative to system number 218892, fits with Schüco AWS, with notch, for the fixation of T- and corner connectors.
DEFLEX ID:
7606150680
Article is available
aluminium span pin 72208000 6x10,0 mm
alternative to system number 272208, fits with Schüco AWS, Kawneer, ALCOA, with notch, for the attachment of T- and corner connectors
DEFLEX ID:
7606861000
Article is available
aluminium span pin 72209000 6x17,0 mm
alternative to system number 272209, fits with Schüco AWS, Kawneer, ALCOA, with notch, for the attachment of T- and corner connectors
DEFLEX ID:
7606861700
Article is available
Button T- Connector 26173
Alternative to system number 226173 fits with Schüco FWS 50 and FWS 50 PD. For profiles with 3mm wall thickness.
DEFLEX ID:
7607526173
Article is available
Button T-Connector 26155
Alternative to system number 226155 fits with Schüco FWS 50 and FWS 50 PD. For profiles with 2mm wall thickness.
DEFLEX ID:
7607526155
Article is available
clamping lever for weldfromle corner joints
for mounting the DEFLEX welding connectors from 40 x 30 mm
DEFLEX ID:
7704500010
Article on request

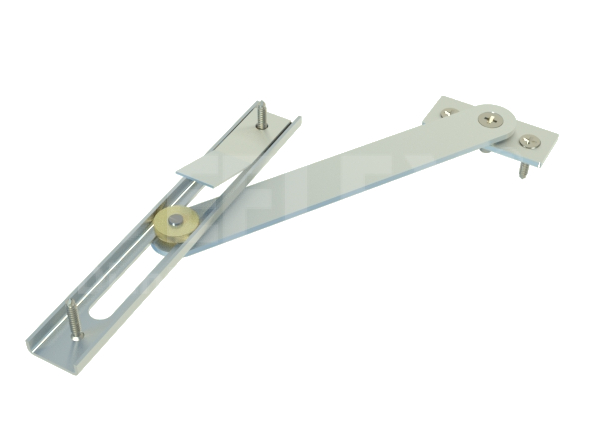

Concealed opening limiter, edition 2019
concealed opening limiter made of stainless steel equipped with lock, brake and opening damping, opening angle from 90 ° to 180 ° degrees,suitable for the systems from Schüco, Heroal and Hueck. Replaces disturbing floor and wall doorstops.
DEFLEX ID:
7607590180
Article is available
Connecting screw 25304 5 x 13,5 mm,
with location groove
alternative to system number 225304, 225352 fits with Schüco AWS, with notch, for the attachment of T- and corner connectors.
DEFLEX ID:
7608525304
Article is available
Connection angle 45+50 mm opening outside
For fixing base profiles and frame extensions with frame and sill.
DEFLEX ID:
7608604550
Article is available
Connection angle 45+ 100 mm opening inside
For fixing base profiles and frame extensions with frame and sill.
DEFLEX ID:
7608614510
Article is available
Connection angle 45+ 100 mm opening outside
For fixing base profiles and frame extensions with frame and sill.
DEFLEX ID:
7608604510
Article is available
Connection angle 45+ 50 mm opening inside
For fixing base profiles and frame extensions with frame and sill.
DEFLEX ID:
7608614550
Article is available
Connection angle 45/30 mm opening inside
For fixing base profiles and frame extensions with frame and sill.
DEFLEX ID:
7608614530
Article is available
Connection angle 45/30 mm opening outside
For fixing base profiles and frame extensions with frame and sill.
DEFLEX ID:
7608604530
Article is available
corner joint 26950
alternative to system number 226950, fits with Schüco AWS, for glare frame profiles, punchable and nailable, trovalized and prefabricated, non-foamed
DEFLEX ID:
7607026950
Article on request
corner joint 26954
alternative to system number 226954, fits with Schüco AWS, for frame and wing profiles, punchable and nailable, trovalized and prefabricated, foamed
DEFLEX ID:
7607026954
Article is available
corner joint 26958
alternative to system number 226958, fits with Schüco AWS, for glare frames, only punchable, trovalized and prefabricated, non-foamed
DEFLEX ID:
7607026958
Article is available
corner joint 26968
alternative to system number 226968, 236175, fits with Schüco AWS, for wing profiles, punchable and nailable, trovalized and prefabricated
DEFLEX ID:
7607026968
Article is available
corner joint 35146
alternative to system number 235146, fits with Schüco AWS, only punchable, trovalized and prefabricated, non-foamed
DEFLEX ID:
7607035146
Article on request
corner joint 35175
alternative to system number 235175, 235176, fits with Schüco AWS, only punchable, trovalized and prefabricated, non-foamed
DEFLEX ID:
7607035175
Article is available
