Corner and T-connectors
For durable and stable connections in aluminum windows.
Most corner connectors can be punched and nailed. System-related punching and drilling can be retained. Trovalizing is used to deburr and degrease the connectors. Optimum and economical adhesive distribution is ensured by the foamed hollow chambers. The material of the foaming is on a similar basis as that of the DEFLEX®-PUR-Duett adhesive; thus an optimal adhesive bond is achieved. A ready-made set consists of one connector each for the outer and inner aluminum hollow chamber. Material: aluminum or die-cast zinc.
Button T- Connector 26173
Alternative to system number 226173 fits with Schüco FWS 50 and FWS 50 PD. For profiles with 3mm wall thickness.
DEFLEX ID:
7607526173
Article on request
Button T-Connector 26155
Alternative to system number 226155 fits with Schüco FWS 50 and FWS 50 PD. For profiles with 2mm wall thickness.
DEFLEX ID:
7607526155
Article on request
corner joint 26950
alternative to system number 226950, fits with Schüco AWS, for glare frame profiles, punchable and nailable, trovalized and prefabricated, non-foamed
DEFLEX ID:
7607026950
Article on request
corner joint 26954
alternative to system number 226954, fits with Schüco AWS, for frame and wing profiles, punchable and nailable, trovalized and prefabricated, foamed
DEFLEX ID:
7607026954
Article on request
corner joint 26958
alternative to system number 226958, fits with Schüco AWS, for glare frames, only punchable, trovalized and prefabricated, non-foamed
DEFLEX ID:
7607026958
Article on request
corner joint 26968
alternative to system number 226968, 236175, fits with Schüco AWS, for wing profiles, punchable and nailable, trovalized and prefabricated
DEFLEX ID:
7607026968
Article on request
corner joint 35146
alternative to system number 235146, fits with Schüco AWS, only punchable, trovalized and prefabricated, non-foamed
DEFLEX ID:
7607035146
Article on request

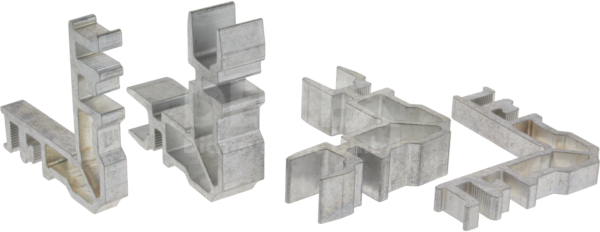

corner joint 35175
alternative to system number 235175, 235176, fits with Schüco AWS, only punchable, trovalized and prefabricated, non-foamed
DEFLEX ID:
7607035175
Article on request

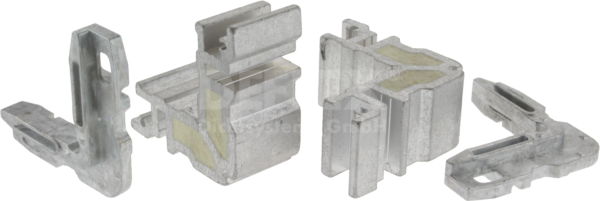

corner joint 35176
alternative to system number 235176, 235175, 236031, 226964 fits with Schüco AWS, for wing sections, only punchable, trovalized and pre-assembled
DEFLEX ID:
7607035176
Article on request
corner joint 36028
alternative to system number 236028, 226949, fits with Schüco AWS, for glare frames, punchable and nailable, trovalized and prefabricated, foamed
DEFLEX ID:
7607036028
Article on request
corner joint 36032
alternative to system number 236032, 226965, fits with Schüco AWS, for wing profiles, punchable and nailable, trovalized and ready-made
DEFLEX ID:
7607036032
Article on request
corner joint 36033
alternative to system number 236033, 226966, fits with Schüco AWS, ffor wing profile and frame profile, punchable and nailable, trovalized and prefabricated
DEFLEX ID:
7607036033
Article on request

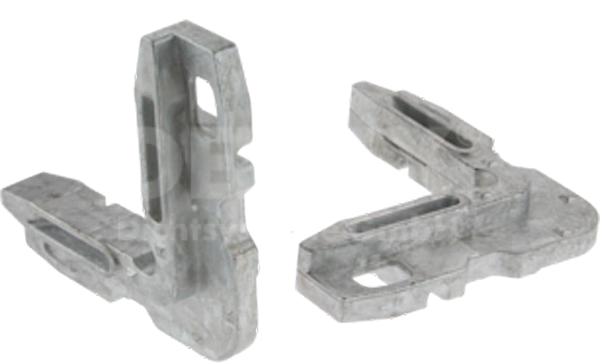

corner joint 36044 B-part
alternative to system number 236044 fits with Schüco AWS, for wing profiles, punchable and nailable and ready-made
DEFLEX ID:
7607136044
Article on request

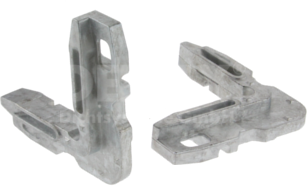

corner joint 36045 B-part
alternative to system number 236045 fits with Schüco AWS, for wing profile and frame profile, punchable and nailable and prefabricated
DEFLEX ID:
7607136045
Article on request

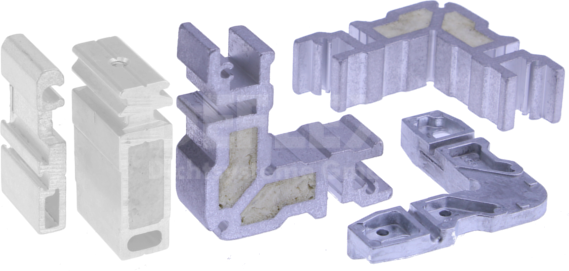

corner joint 36218
alternative to system number 236218, 236198, fits with Schüco AWS, for frame profiles, punchable and nailable, trovalized and prefabricated, foamed
DEFLEX ID:
7607036218
Article on request
corner joint 36220
alternative to system number 236220, 236199, fits with Schüco AWS, for frame profiles, punchable and nailable, trovalized and prefabricated
DEFLEX ID:
7607036220
Article on request
corner joint 36226
alternative to system number 236226, 236217, fits with Schüco AWS, for wing and frame profile, only punchable, trovalized and prefabricated
DEFLEX ID:
7607036226
Article on request
corner joint 36227
alternative to system number 236227, 236204, fits with Schüco AWS, for wing profiles, only punchable, trovalized and prefabricated
DEFLEX ID:
7607036227
Article on request

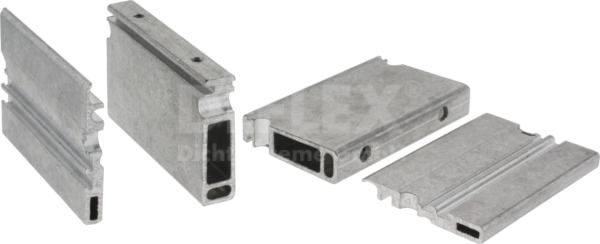

t-joint 16593
Alternative to system number 216593, fits with Schüco AWS, for mullion / transom, nailable, trovalised and assembled, unfoamed with inserted jacking screw
DEFLEX ID:
7607516593
Article on request
t-joint 26983
alternative to system number 226983, 226982, 235067, 235066, fits with Schüco AWS, for posts / bars, nailable, trovalized and prefabricated, unfoamed with jack screw
DEFLEX ID:
7607526983
Article on request
t-joint 26985
alternative to system number 226985, 226984, 235069, 235068, fits with Schüco AWS, for posts / bars, nailable, trovalized and prefabricated, foamed with jack screw
DEFLEX ID:
7607526985
Article on request
t-joint 26987
alternative to system number 226987, 226986, 235071, 235070, fits with Schüco AWS, for posts / bars, nailable, trovalized and prefabricated, foamed with jack screw
DEFLEX ID:
7607526987
Article on request
t-joint 26989
alternative to system number 226989, 226988, 235073, 235072, fits with Schüco AWS, for posts / bars, nailable, trovalized and prefabricated, unfoamed with jack screw
DEFLEX ID:
7607526989
Article on request
t-joint 26991
alternative to system number 226991, 226990, 235075, 235074, fits with Schüco AWS, for posts / bars, nailable, trovalized and prefabricated, foamed with jack screw
DEFLEX ID:
7607526991
Article on request
