Base and adpation profiles
For the optimal installation of PVC or aluminium windows, there are window sill connection profiles (base sill connection profile) made of PVC. These connection profiles ensure optimum installation of an external window sill as well as an internal window sill and offer the option of further reinforcement (substructure) or the connection of sealing foils. When connecting façades, façade connection profiles are used to create the transition between the vertical wall connection and the façade.
isolation profile 4812 43 mm
alternative to system number 224812, fits with FWS50, with grid for DEFLEX holding clip for thermal separation in mullion / transom constructions
DEFLEX ID:
2207308120
Article is available
base profile 6438 HI
alternative to system number 246438, fits with Schüco AWS 75, Heroal 110ES, 65 and Neo72, Wicona EVO75, to clip-in
DEFLEX ID:
22026464381
Article is available
base profile 6436 HI
alternative to system number 246436, fits with Schüco AWS 75, Heroal 110ES, 65 and Neo72, Wicline 65 and 77, Hueck Lambda, Akotherm 1502 72/48 mm, to clip-in
DEFLEX ID:
22026464361
Article is available
base profile 6021
alternative to system number 246021, fits with Schüco AWS 75, Heroal 110ES, Wicline 65 and 77, Hueck Lambda, Akotherm 1502 72/48 mm, to clip-in
DEFLEX ID:
2202646021
Article is available
base profile 6022
alternative to system number 246022, fits with Schüco AWS 75, Heroal 110ES, Wicline 65 and 77, Wicona EVO75, Akotherm 1502 72/48 mm, to clip-in
DEFLEX ID:
2202646022
Article is available
base profile 6224
alternative to system number 246224, fits with Schüco AWS 70, Heroal 110ES, Wicline 65 and 77, Wicona EVO75, Akotherm 1502 72/48 mm, to clip-in
DEFLEX ID:
2202646224
Article is available
base profile 6225
alternative to system number 246225, fits with Schüco AWS 70, Heroal 65 and Neo72, Wicline 65, Wicona EVO75, to clip-in
DEFLEX ID:
2202646225
Article is available
base profile 6435
alternative to system number 246435, fits with Schüco AWS 75, Heroal 110ES and 65, Wicline 65, Hueck Lambda, to clip-in
DEFLEX ID:
2202646435
Article is available
base profile 6436
alternative to system number 246436, fits with Schüco AWS 75, Heroal 110ES, 65 and Neo72, Wicline 65 and 77, Hueck Lambda, Akotherm 1502 72/48 mm, to clip-in
DEFLEX ID:
2202646436
Article is available
base profile 6436 HI
alternative to system number 246436, fits with Schüco AWS 75, Heroal 110ES, 65 and Neo72, Wicline 65 and 77, Hueck Lambda, Akotherm 1502 72/48 mm, to clip-in
DEFLEX ID:
22026464361
Article is available
base profile 6437
alternative to system number 246437, fits with Schüco AWS 75, Heroal 110ES, to clip-in
DEFLEX ID:
2202646437
Article is available
base profile 6438
alternative to system number 246438, fits with Schüco AWS 75, Heroal 110ES, 65 and Neo72, Wicona EVO75, to clip-in
DEFLEX ID:
2202646438
Article is available
base profile 6438 HI
alternative to system number 246438, fits with Schüco AWS 75, Heroal 110ES, 65 and Neo72, Wicona EVO75, to clip-in
DEFLEX ID:
22026464381
Article is available
base profile 6439
alternative to system number 246439, fits with Schüco AWS 70, Heroal 110ES, 65 and Neo72, Wicline 65 and 77, Wicona EVO75, Hueck Lambda, Akotherm 1502 72/48 mm, to clip-in
DEFLEX ID:
2202646439
Article is available
base profile 6447
alternative to system number 246447, fits with Schüco AWS 70, Heroal 110ES and 65, Wicline 65 and 77, Wicona EVO75, Hueck Lambda, to clip-in
DEFLEX ID:
2202646447
Article on request
clamping profile 6231
alternative to system number 246231, fits with AWS 70, for coupling windows in the façade
DEFLEX ID:
2207406231
Article is available
clamping profile 6232
alternative to system number 246232, fits with AWS 75, for coupling windows in the façade
DEFLEX ID:
2207406232
Article is available
Connection angle 45+50 mm opening outside
For fixing base profiles and frame extensions with frame and sill.
DEFLEX ID:
7608604550
Article is available
Connection angle 45+ 100 mm opening inside
For fixing base profiles and frame extensions with frame and sill.
DEFLEX ID:
7608614510
Article is available
Connection angle 45+ 100 mm opening outside
For fixing base profiles and frame extensions with frame and sill.
DEFLEX ID:
7608604510
Article is available
Connection angle 45+ 50 mm opening inside
For fixing base profiles and frame extensions with frame and sill.
DEFLEX ID:
7608614550
Article is available

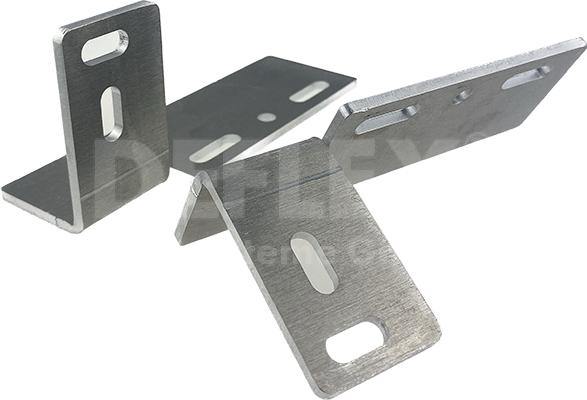

Connection angle 45/30 mm opening inside
For fixing base profiles and frame extensions with frame and sill.
DEFLEX ID:
7608614530
Article is available

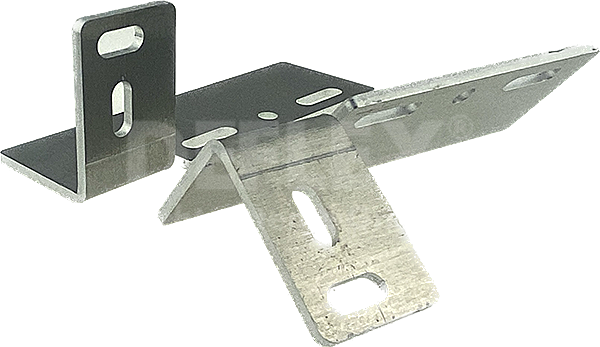

Connection angle 45/30 mm opening outside
For fixing base profiles and frame extensions with frame and sill.
DEFLEX ID:
7608604530
Article is available
Dämmflex 100, base profile
suitable for Heroal W72
2350x60x30 mm
Länge: 2350 mm, passend zu Heroal W72
DEFLEX ID:
2802100382
Article on request
Dämmflex 100, base profile for Hueck WS075
2350 x 60 x 30 mm
Length: 2350 mm, suitable for Hueck WS075
DEFLEX ID:
2802100404
Article on request
Dämmflex 100, base profile suitable for Veka SL82
2350 x 70 x 30 mm
Länge: 2350 mm, passend zu Veka SL82
DEFLEX ID:
2802100591
Article on request
Dämmflex 100, basic profile for AWS 75
2350 x 65 x 30 mm with flat insulating web
Length: 2350 mm, with flat insulating web, suitable for Schüco AWS 75
DEFLEX ID:
2802100399
Article is available
